additional page with further images
|
 |
 |
|
Rotor with vacuum tube collectors. Setup for test and measurement at Saarbrücken university/ Germany. |
|
 |
Parabolic concentrator (setup for test). Operated by SolarTracker. |
|
 |
|
Trough collector at DLR setup for test and measuring (Deutsche Versuchsanstalt für Luft- und Raumfahrt, Abt. Solartechnik) in Cologne/Germany. |
|
 |
|

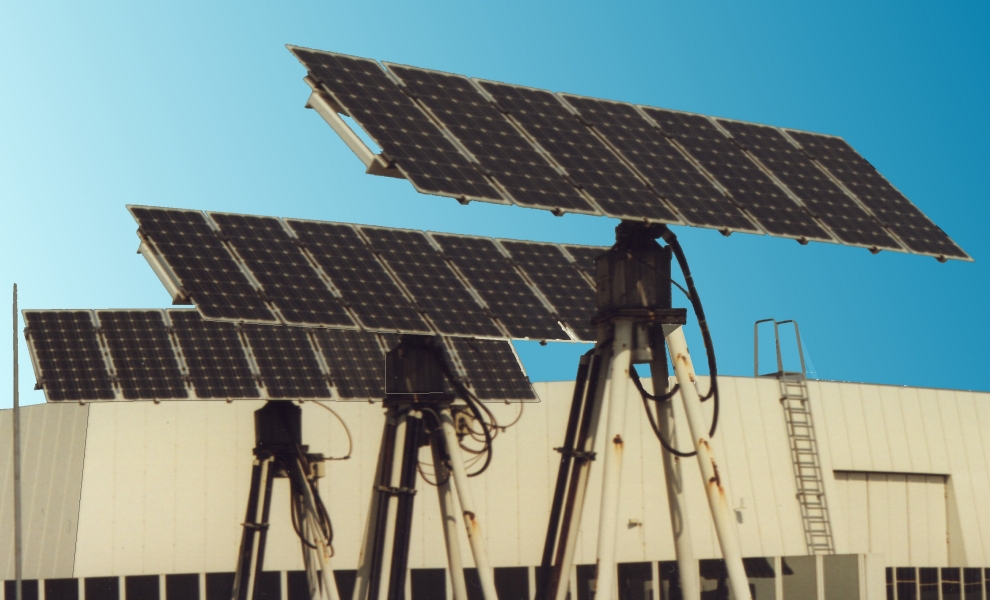

Three EGIS-rotors (each panel approx. 8 m2!) in duty at BMW (car manufactioner) Munich/ Germany (Search- and information center) since 1992. |
|
 |
Rotor with parabolical reflector in solar- astronomical use (Regensburg university/Germany) |
|
 |

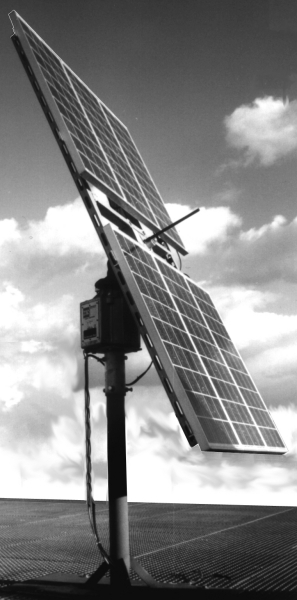

Rotor carrying approx. 3 m2 photovoltaic panel (vocational school at Velbert/Germany) |
|
 |
Heliostat |
|
 |
|
Here the Tracker is used for tracking of a direct radiation gage (pyrheliometer) of the company Kipp & Zonen (university Marburg/Germany). |
|
 |
|
EGIS rotors at the EXPO 2000 in Hannover/Germany |
|
 |
|

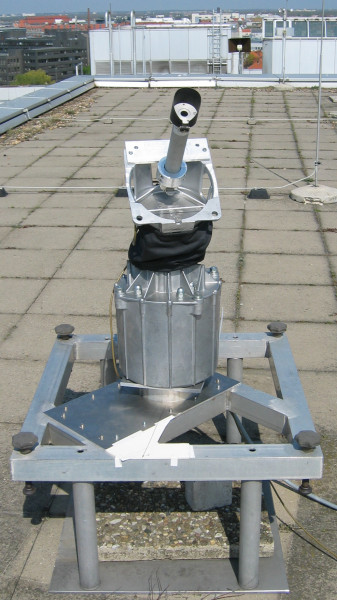

The Technical University of Berlin (TH Berlin) uses the SolarTracker for the accurate and exact tracking of an pyrheliometer. |
|
 |
|
the SolarTracker in scientific use for research, development and education |
|
 |
|
Hochschule für Technik, Wirtschaft & Kultur Leipzig/Germany (HTWK): Here the SolarTracker from EGIS is part of a complex instruction, research and demonstration installation. |
|
 |
|
EGIS-Heliostat at the "Labor for regenerative Energien" »Villa Sonnen- schein« at the Fachhochschule für Wirtschaft & Technik in Berlin/Germany |
|
 |
|
EGIS-rotor in duty for row-measurements at the Technische Universität Dresden/ Germany |
|
 |
|

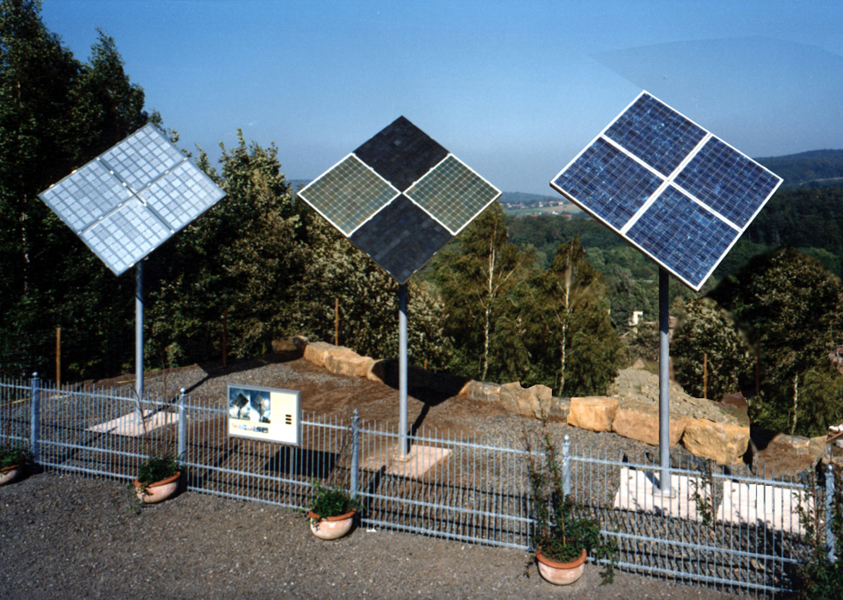

The "sun wheel" (approx. 6.5 m2) of grammar school Pischelsdorf (Steiermark)/Austria. Controlled by a SolarTracker. |
|
 |
|
Rotor carries PV- modules with conventional target device (Merseburg university/Germany). |
|
 |
|
Here the EGIS Tracker carries and positiones approx. 8 m2 PV modules! These 8 m2 do not cause any problems in such calmy areas. |
|
 |
|
EGIS-Rotor in duty with a Heliostat in "Technikum Butzbach" (ISB Technician school for environment Butzbach (Hessen)/ Germany |
|
 |

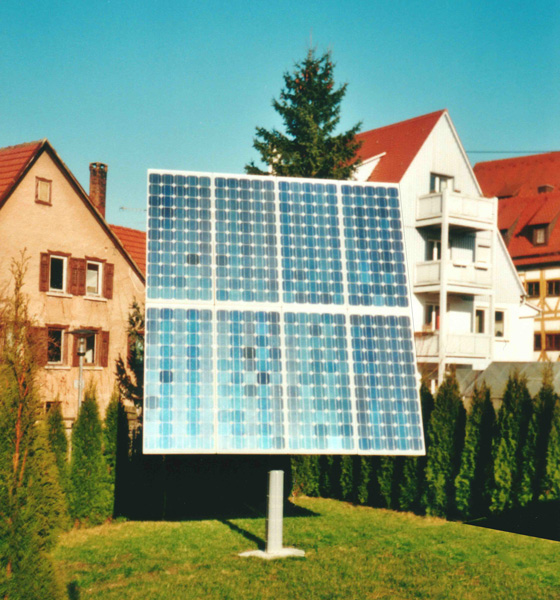

SolarTracker on a concrete pole with a photovoltaic panel |
|
 |
|
EGIS-rotor with a special application (MICRO ENERGY) at the »Frauenhofer Institut for Solar Energy« in Freiburg/ Germany |
|
 |
Parabolic concentrator upon an EGIS-rotor |
|
 |
|

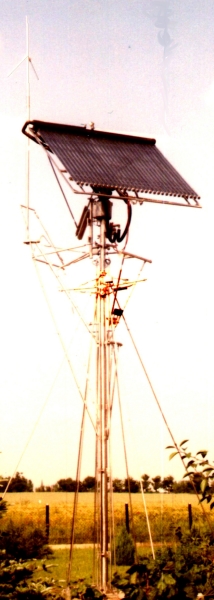

EGIS rotor with vacuum tube collector |
|
 |
|

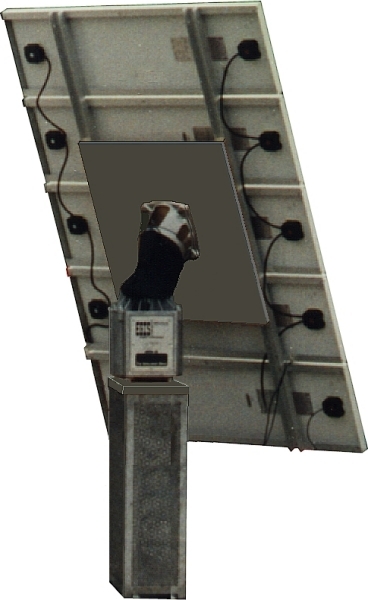

asymmetric use of the panel carrier |
|
 |
|
setup for test and measuring at the university of Lugano/ Switzerland |
|
 |
|

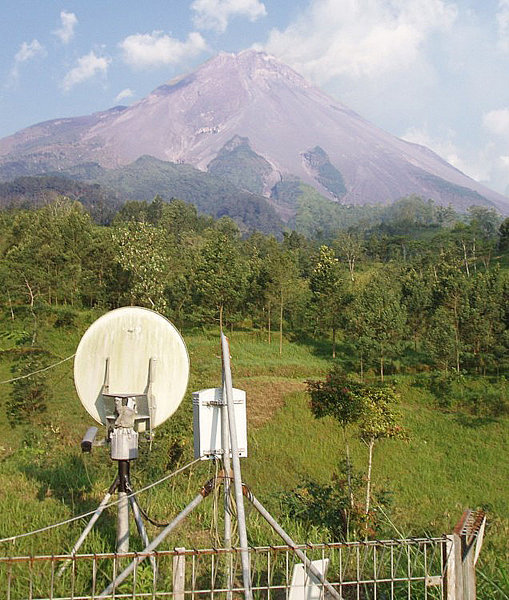

At the vulcano 'Merapi' in Indonesia the EGIS two-axis-anntenna-rotor is used for communication between the aloft sensor station being positioned in dangerous surroundings and the measuring laboratory down in the valley. The device has been developed, built and also installed by the Institute of Geophysics at Hamburg University. Nowadays it is run by the 'Merapi Vulcano Observatory' in Yogukarta/Indonesia. The same device is used at Mount Pinatubu/Indonesia. |
|
 |
|
Measure and experi- mental construction of vacuum tube collectors. Tracking with a SolarTracker of EGIS. |
|
 |
|
At the "Paul Scherrer Institut" (PSI Villigen/Switzerland) the SolarTracker carries solar measuring instruments and a weather registrating camera. |
